Peugeot 307 (2006 & 2007) Fuse Box Diagrams & Location
The Peugeot 307 (2006 & 2007) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 307.
Fuse Box Location

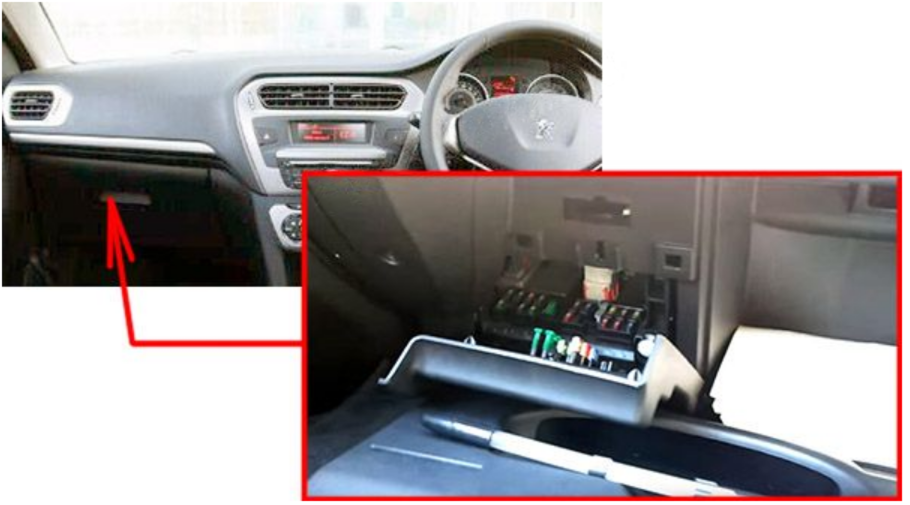

Passenger Compartment Fuse Box
It is located in the glovebox (passenger side).

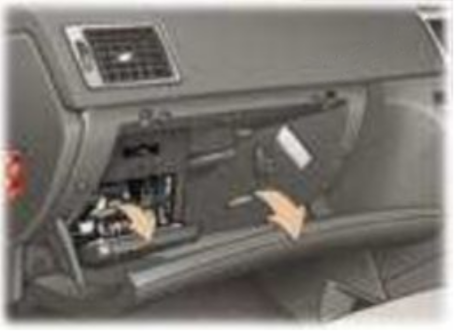

Open the glove box lid to gain access.

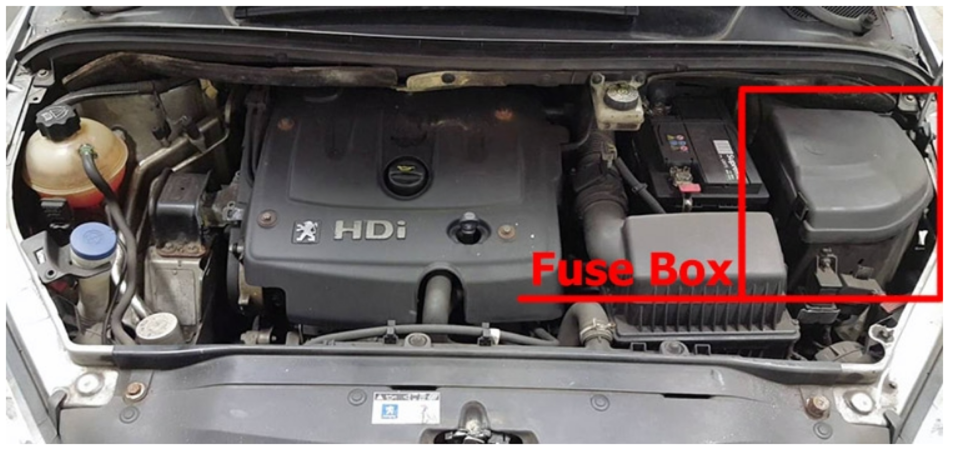

Engine Compartment Fuse Box
Fuse Box Diagrams

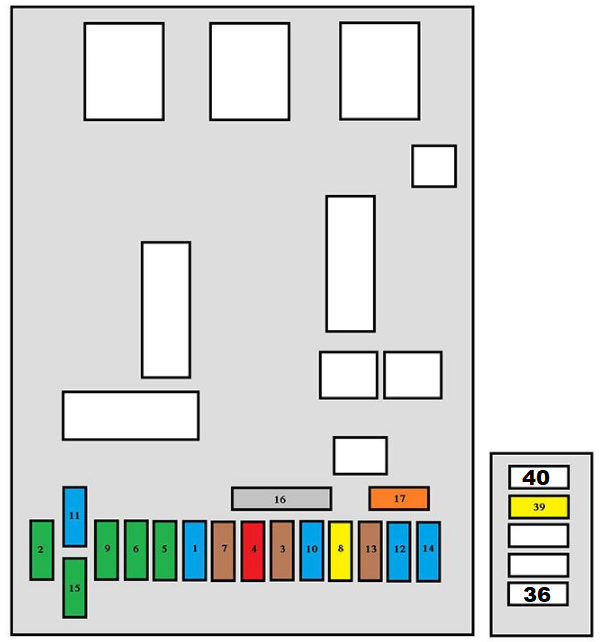

Passenger Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F1 | 15 A | 2006: Not used. 2007: Rear wiper. |
| F2 | 30 A | Locking and deadlocking system. |
| F3 | 5 A | Airbags and pre-tensioners control unit. |
| F4 | 10 A | 2006: Brake and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, ESP sensor, particle emission filter pump, diagnostic socket, electrochromatic mirror. 2007: Same functions with ESP dual-function sensor and STOP switch specification added. |
| F5 | 30 A | 2006: Front electric windows and heated mirrors supply. 2007: Front electric windows, sunroof, and heated mirrors supply. |
| F6 | 30 A | 2006: Rear electric windows supply and hinged flap motor. 2007: Rear electric windows supply. |
| F7 | 5 A | Front and rear courtesy lights, map reading lights, and glove box lighting. |
| F8 | 20 A | 2006: Multifunction display supply, audio equipment, audio/telephone system, alarm siren, alarm control unit, trailer fuse box, steering wheel controls supply. 2007: Same functions with driving school module added and updated alarm unit description. |
| F9 | 30 A | Front and rear 12 V power sockets. |
| F10 | 15 A | 2006: Automatic gearbox control unit, brake switch, tyre under-inflation detection control unit. 2007: Automatic gearbox control unit, tyre under-inflation control unit, STOP switch. |
| F11 | 15 A | Diagnostic socket, particle emission filter unit/control unit, low-current ignition switch. |
| F12 | 15 A | 2006: Rear parking assistance, Hi-Fi amplifier. 2007: Driving school module, rear parking assistance. |
| F13 | 5 A | Engine fuse box supply and rain/brightness sensor. |
| F14 | 15 A | 2006: Trailer fuse box, instrument panel, automatic air conditioning, airbags, pre-tensioners, rear protective pop-up roll-over hoops unit, hands-free kit. 2007: Trailer fuse box, instrument panel, airbags and pre-tensioners unit, automatic air conditioning, hands-free kit. |
| F15 | 30 A | Locking and deadlocking power supply . |
| F16 | — | PARC shunt. |
| F17 | 40 A | Heated rear screen . |
| F36 | 20 A | 2006: Hi-Fi amplifier. |
| F40 | 30 A | 2006: Retractable roof pump supply. |

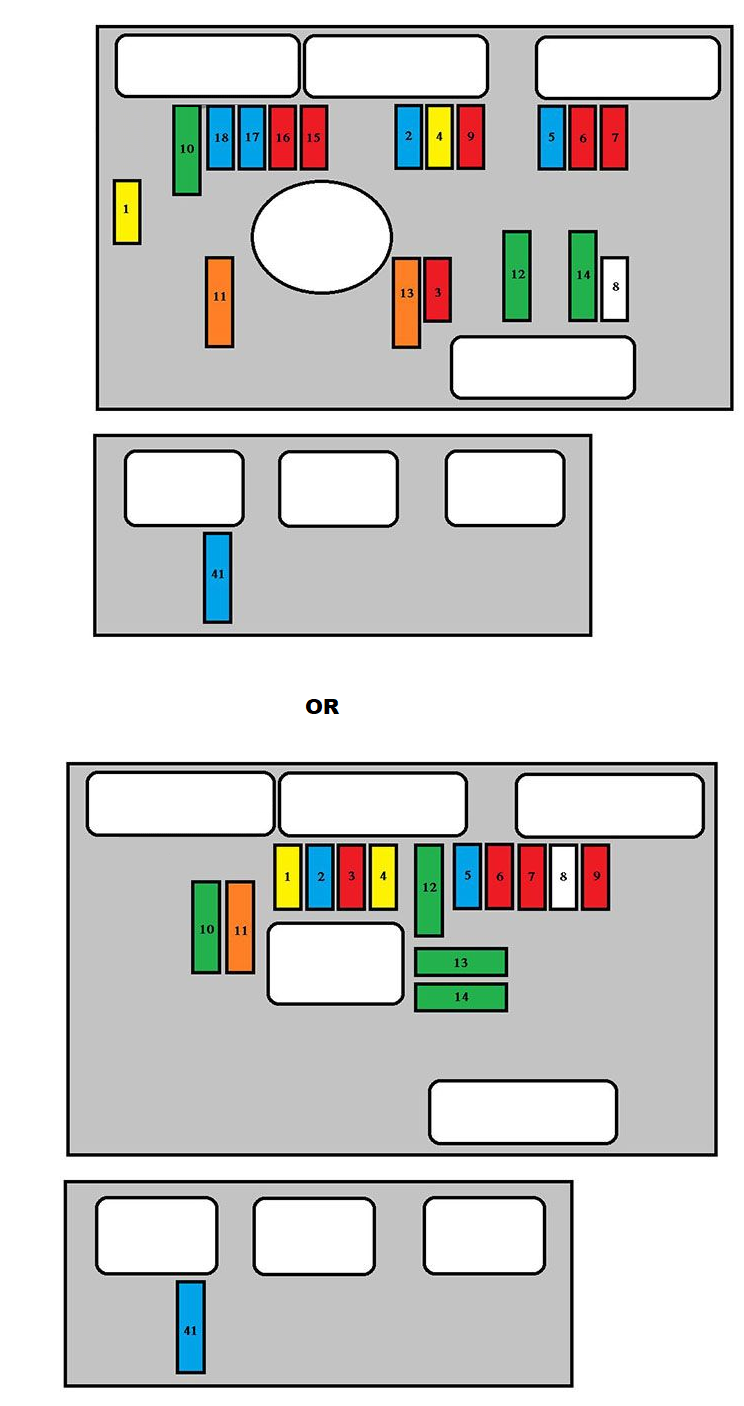

Engine Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F1 | 20 A | 2006: Fan assembly relay control and engine control unit control. 2007: Engine control unit and fan assembly high-speed relays supply. |
| F2 | 15 A | Horn. |
| F3 | 10 A | 2006: Front wash-wipe. 2007: Front and rear wash-wipe. |
| F4 | 20 A | Headlamp wash. |
| F5 | 15 A | Fuel pump and purge canister solenoid valve (2.0L petrol). |
| F6 | 10 A | Four-speed automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high-speed relay, and right and left xenon headlamps. |
| F7 | 10 A | ABS/ESP control unit and power steering electro-pump unit control unit. 2006: Listed as power steering control unit. 2007: Specifically listed as power steering electro-pump unit control unit. |
| F8 | 2006: 20 A / 2007: 25 A | Starter control. |
| F9 | 10 A | Additional heating unit (Diesel) and coolant level switch. |
| F10 | 30 A | 2006: Engine management actuators, including ignition coil, solenoid valves, oxygen sensors, control units, injectors and heaters, plus purge canister solenoid valve for 1.6L petrol. 2007: Engine control unit actuators with the same components, plus purge canister solenoid valve for 1.4L and 1.6L petrol. |
| F11 | 40 A | Air conditioning blower. |
| F12 | 30 A | Windscreen wipers, low/high speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Air pump (2.0L petrol). |
| F15 | 10 A | Right main beam headlamp. |
| F16 | 10 A | Left main beam headlamp. |
| F17 | 15 A | Left dipped headlamp. |
| F18 | 15 A | Right dipped headlamp. |
| F41 | 15 A | 2007: Six-speed automatic gearbox control unit. |
| MF1 | 30 A / 50 A | 30 A for 200 W fan unit; 50 A for 400 W and 460 W fan unit. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP solenoid valves. |
| MF4 | 80 A | Built-in systems interface supply. |
| MF5 | 80 A | Built-in systems interface supply. |
| MF6 | 80 A | Passenger compartment fuse box. |
| MF8 | 70 A | Power steering electro-pump unit. |
