Peugeot iOn (2010 – 2018) Fuse Box Diagrams & Location
The Peugeot iOn (2010–2018) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot iOn.
Fuse Box Location

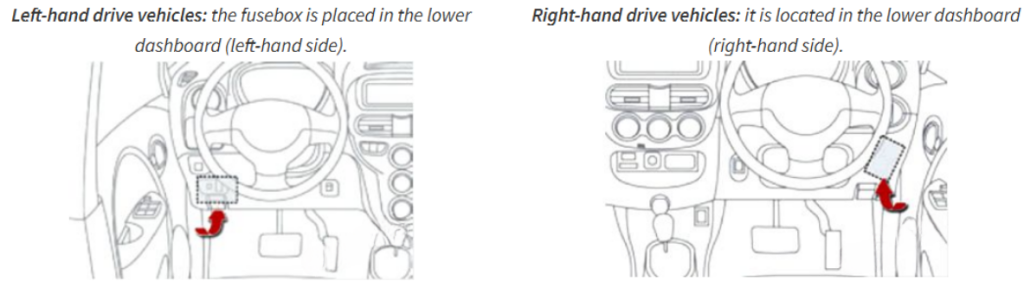

Passenger Compartment Fuse Box
Unclip the cover and remove it completely by pulling it towards you.

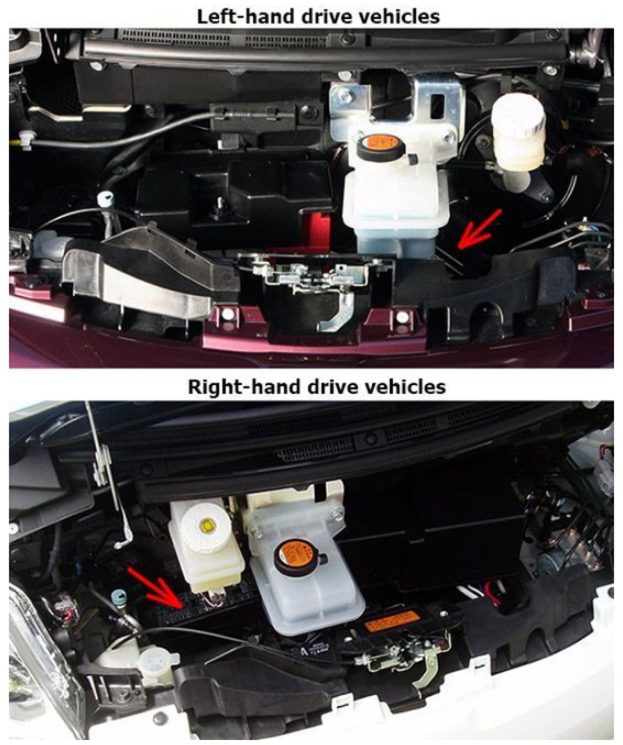

Engine Compartment Fuse Box
Fuse Box Diagrams

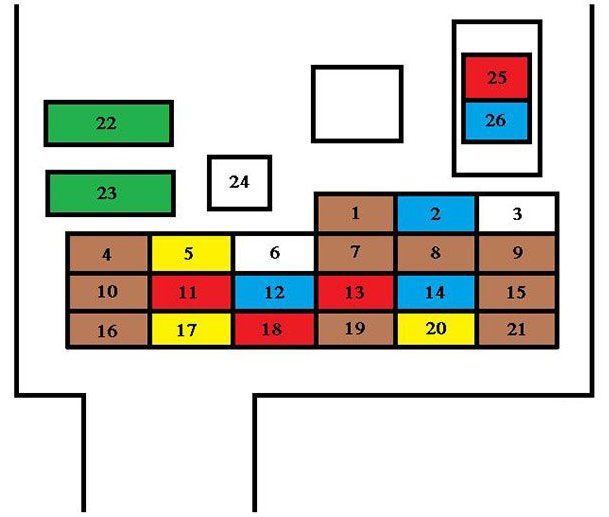

Passenger Compartment Fuse Box
| № | Rating | Functions |
|---|---|---|
| 1 | 7.5 A | Left hand front and rear sidelamps. |
| 2 | 15 A | Accessory socket. |
| 3 | – | Not used. |
| 4 | 7.5 A | Starter motor. |
| 5 | 20 A | Audio system. |
| 6 | – | Not used. |
| 7 | 7.5 A | Vehicle equipment (Dashboard consumers), right hand front and rear sidelamps. |
| 8 | 7.5 A | Electric door mirrors. |
| 9 | 7.5 A | Supervisor controller. |
| 10 | 7.5 A | Air conditioning. |
| 11 | 10 A | Rear foglamp. |
| 12 | 15 A | Door locking. |
| 13 | 10 A | Courtesy lamp. |
| 14 | 15 A | Rear wiper. |
| 15 | 7.5 A | Instrument panel. |
| 16 | 7.5 A | Heating. |
| 17 | 20 A | Heated seat. |
| 18 | 10 A | Option. |
| 19 | 7.5 A | Door mirror heating. |
| 20 | 20 A | Windscreen wiper. |
| 21 | 7.5 A | Airbags. |
| 22 | 30 A | Rear screen defrosting |
| 23 | 30 A | Heating. |
| 24 | – | Non used. |
| 25 | 10 A | Radio. |
| 26 | 15 A | Passenger compartment fuse. |

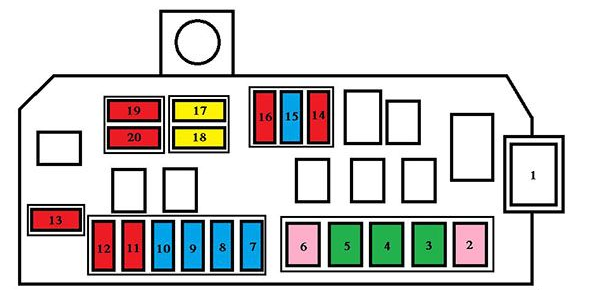

Engine Compartment Fuse Box
| № | Rating | Functions |
|---|---|---|
| 1 | – | Not used. |
| 2 | 30 A | Internal fuse. |
| 3 | 40 A | Electric motor. |
| 4 | 40 A | Radiator fan. |
| 5 | 40 A | Electric windows. |
| 6 | 30 A | Vacuum pump. |
| 7 | 15 A | Main battery ECU. |
| 8 | 15 A | Third brake lamp. |
| 9 | 15 A | Front foglamps. |
| 10 | 15 A | Water pump. |
| 11 | 10 A | On-board charger. |
| 12 | 10 A | Direction indicator. |
| 13 | 10 A | Horn. |
| 14 | 10 A | Daytime running lamps. |
| 15 | 15 A | Battery fan. |
| 16 | 10 A | Air conditioning compressor. |
| 17 | 20 A | Right hand dipped beam. |
| 18 | 20 A | Left hand dipped beam, headlamp adjusters. |
| 19 | 10 A | Right hand main beam. |
| 20 | 10 A | Left hand main beam. |
