Peugeot Partner (2008 – 2017) Fuse Box Diagrams & Location
The Peugeot Partner (2008–2017) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot Partner.
Fuse Box Location
The fuse boxes are placed:

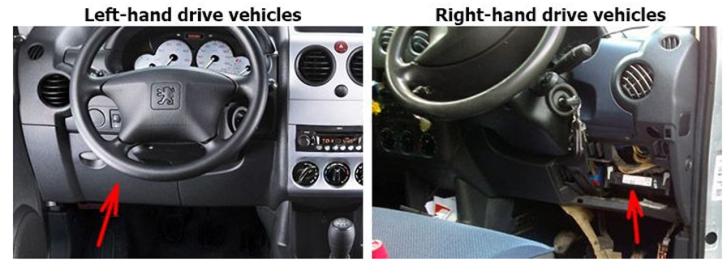

- in the lower part of the fascia on the left-hand side, behind the cover (on the right-hand side in the RHD);
- under the bonnet (near the battery).
Passenger Compartment Fuse Bo

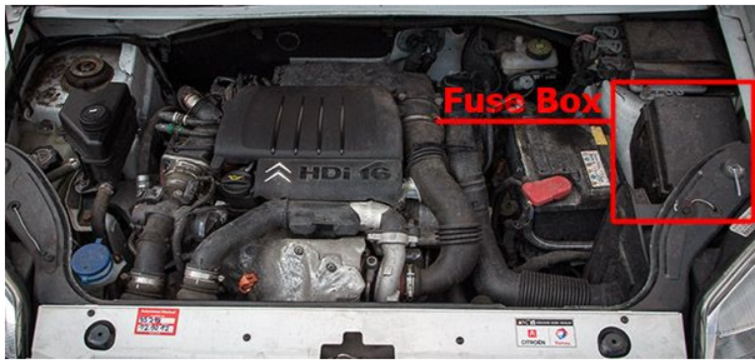

Engine Compartment Fuse Box

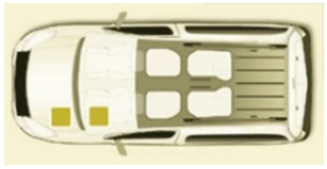

If fitted on your vehicle, an additional fusebox is used for towing, the towbar and the connections for the coachbuilder and platform cab modifications. It is located on the right behind the load retaining partition.
Fuse Box Diagrams
Passenger Compartment Fuse Box

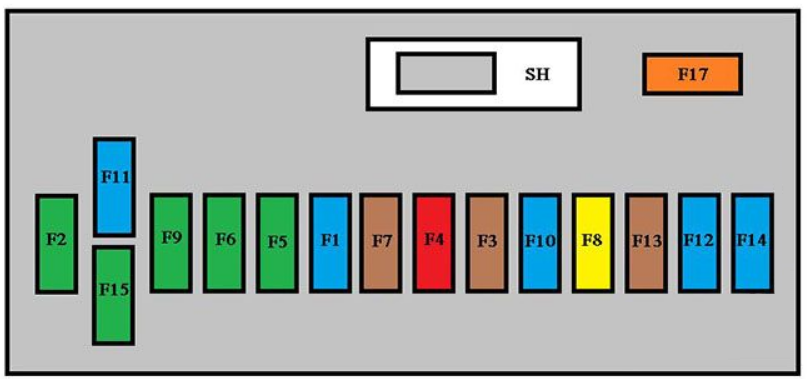

Dashboard Fuse Box
| № | Amperes | Allocation |
|---|---|---|
| 1 | 15 | Rear wiper |
| 2 | 30 | Central locking (2014-2017) |
| 3 | 5 | Airbags |
| 4 | 10 | Air conditioning, diagnostic socket, mirror control, headlamp beam |
| 5 | 30 | Electric windows |
| 6 | 30 | Locks |
| 7 | 5 | Rear courtesy lamp, front map reading lamp, roof console |
| 8 | 20 | 2008-2013: Audio equipment, CD changer, display, tyre underinfl ation detection, alarm and siren/2014-2018:Audio equipment, screen, tyre under-inflation detection, alarm and siren |
| 9 | 30 | Front and rear 12V socket |
| 10 | 15 | Central column |
| 11 | 15 | Low current ignition switch |
| 12 | 15 | Rain and sunshine sensor, airbag |
| 13 | 5 | Instrument panel |
| 14 | 15 | Parking sensors, digital air conditioning controls, hands-free kit |
| 15 | 30 | Locks |
| 16 | – | Spare |
| 17 | 40 | Heated rear screen/mirrors |

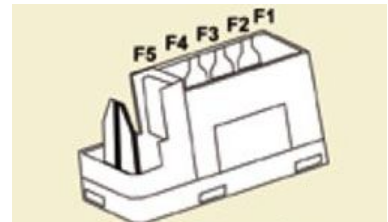

Passenger compartment
| № | Amperes | Allocation |
|---|---|---|
| 1 | – | Spare |
| 2 | 20 | Heated seats |
| 3 | – | Spare |
| 4 | 15 | Folding mirrors relay |
| 5 | 15 | Refrigeration equipment socket relay |

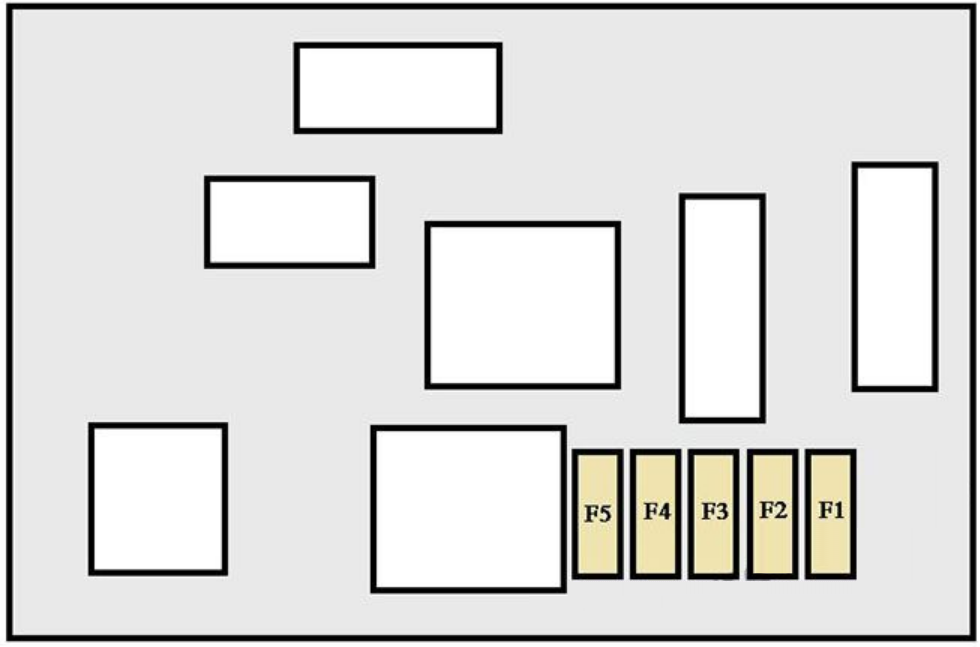

Platform Cab Fuses
| № | Amperes | Allocation |
|---|---|---|
| 1 | 15 | Spare |
| 2 | 15 | Ignition, generator operating relay |
| 3 | 15 | Trailer 12V supply |
| 4 | 15 | Permanent supply for the modifiers |
| 5 | 40 | Hazard warning lamps |

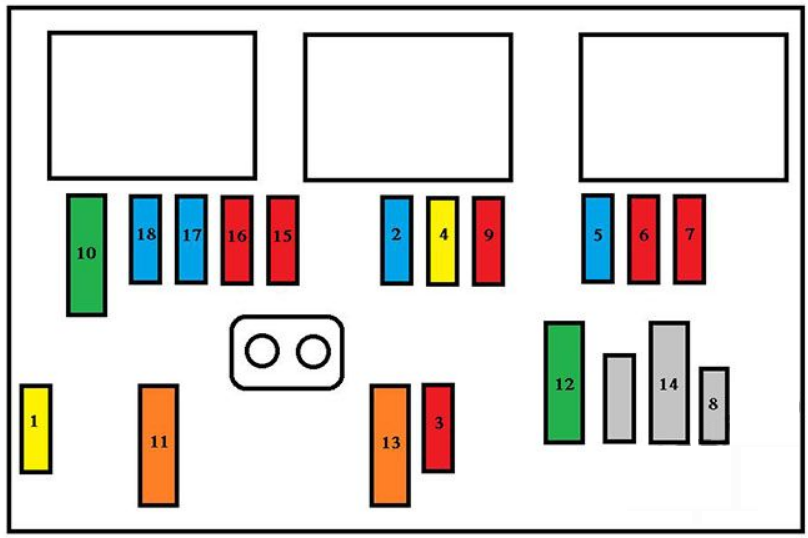

Engine Compartment Fuse Box
| № | Amperes | Allocation |
|---|---|---|
| 1 | 20 | Engine management |
| 2 | 15 | Horn |
| 3 | 10 | Front and rear screenwash pump |
| 4 | 20 | 2008-2013: Headlamp wash pump /2014-2018: Headlamp wash pump or LED |
| 5 | 15 | Engine components |
| 6 | 10 | 2008-2013: Steering wheel angle sensor, ESP /2014-2018: Steering wheel angle sensor, DSC |
| 7 | 10 | Brake switch, clutch switch |
| 8 | 25 | Starter motor |
| 9 | 10 | Headlamp beam motor, parc management unit |
| 10 | 30 | Engine components |
| 11 | 40 | Spare |
| 12 | 30 | Wipers |
| 13 | 40 | Built-in systems interface |
| 14 | 30 | Pump |
| 15 | 10 | Right-hand main beam headlamp |
| 16 | 10 | Left-hand main beam headlamp |
| 17 | 15 | Right-hand dipped beam headlamp |
| 18 | 15 | Left-hand dipped beam headlamp |
