Dacia Spring (2024 – 2027) Fuse Box Diagrams & Location

The Dacia Spring (2024–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Spring.

Fuse Box Location

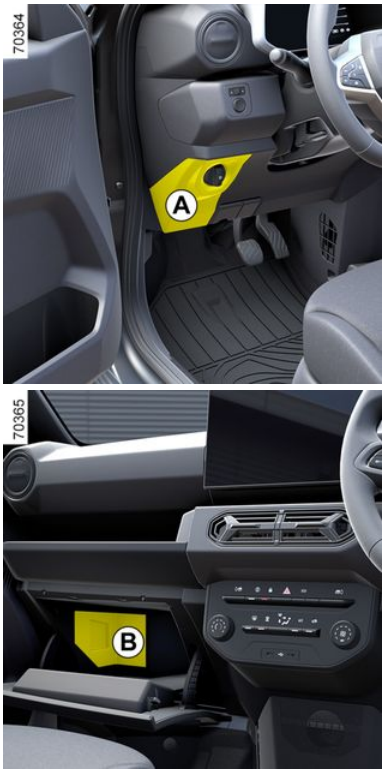

Passenger Compartment Fuse Box

If any electrical component does not work, check the condition of the fuses. Pull the flap A from the lower edge or, depending on the vehicle, pull the B flap to remove it to access the fuses.

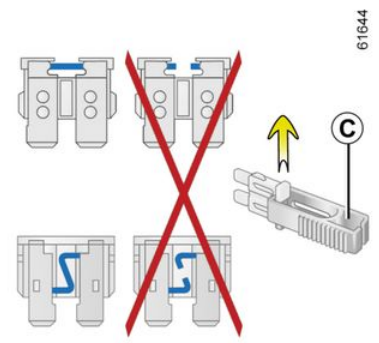

Clamp C
Remove the fuse using tweezers C located at the back of flap A or B . To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.

Fuse Box Diagrams

Passenger Compartment Fuse Box

(The presence and location of fuses depends on the vehicle equipment level)

Symbol	Allocation
	Child safety relay / Automatic light sensor
	EVC fuse
	Car sharing telematic box
	Front wiper
	Backup light relay (Rear lights / Ultra low cost navigation / BCM)
	Daylight running lamp / Right Tail Lamp / High Beam / Low Beam
	Radio / BCM / Energy management ECU
	Accessory socket
	Blower motor / AC control
	Front power window
	BCM
	Roof lamp / Window lift control relay coil
	Cluster
	Energy management ECU
	Horn
	Turn signal lights control
	Door locking
	Air conditioning compressor / Powertrain control relay coil
	Outside rear view mirror
	BCM / Gear shift lever / Cluster / Energy management ECU
	Stoplight switch
	Rear wiper/washer / backup light relay
	Electronic power steering
	Airbag
	Defogger
	Transponder / Electronic stability program / Stop lamp switch
	Rear power window
	Inverter
	Parking Aid switch / Speed limiter
