Hyundai H-100 (2005 – 2018) Fuse Box Diagrams & Location
Find the fuse box location and detailed fuse diagrams for the Hyundai H-100 models produced between 2005 and 2018. This blog helps identify fuse assignments, electrical components, and fuse panel layouts, making it easier to troubleshoot electrical issues, replace blown fuses, and maintain your Hyundai H-100 properly.
Fuse Box Location

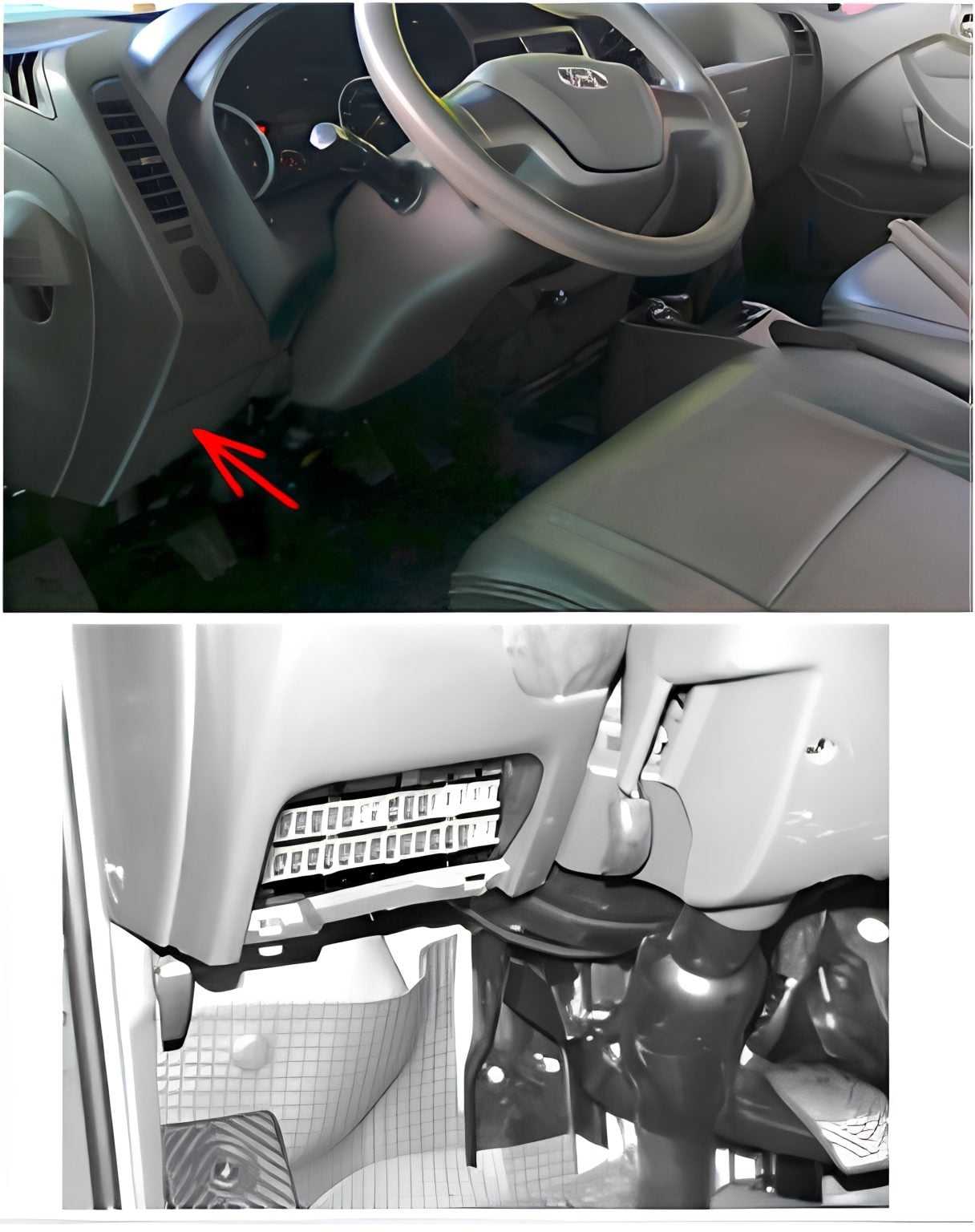

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.
Engine Compartment Fuse Box
Fuse Box Diagrams

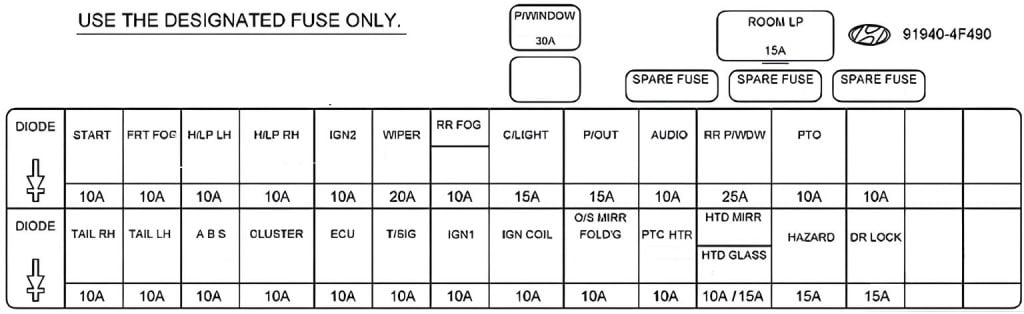

Passenger Compartment Fuse Box
| DESCRIPTION | AMPERAGES | CIRCUIT PROTECTED |
|---|---|---|
| P/WINDOW (FUSIBLE LINK) | 30A | Power window relay |
| START | 10A | Start relay, Glow control module, ECM |
| FRT FOG | 10A | Front fog lamp relay |
| H/LP LH | 10A | Left head lamp, Instrument cluster |
| H/LP RH | 10A | Right head lamp |
| IGN 2 | 10A | Heater control switch, ETACM, Head lamp leveling switch, Blower relay |
| WIPER | 20A | Wiper motor, Multi-function switch |
| RR FOG | 10A | Rear fog lamp relay |
| C/LIGHT | 15A | Cigarette lighter |
| P/OUT | 15A | Not used |
| AUDIO | 10A | Audio |
| RR P/WDW | 25A | Power window switch |
| PTO | 10A | Not used |
| TAIL RH | 10A | Right position lamp, Right rear combination lamp, License plate lamp |
| THIL LH | 10A | Left position lamp, Left rear combination lamp |
| ABS | 10A | Not used |
| CLUSTER | 10A | Instrument cluster, Generator resister |
| ECU | 10A | ECM |
| T/SIG | 10A | Hazard switch, Back-up lamp switch |
| IGN 1 | 10A | ETACM |
| IGN COIL | 10A | EGR solenoid valve #1, #2 (2.5 TCI), Glow control module (2.6 N/A), Fuel water sensor, Neutral switch |
| O/S MIRR FOLD’G | 10A | Not used |
| PTC HTR | 10A | Heater control switch |
| HTD GLASS | 15A | Rear window defroster switch |
| HAZARD | 15A | Hazard switch |
| DR LOCK | 15A | ETACM, Left front door lock actuator |
| ROOM LP | 15A | Room lamp, Door warning switch, Audio, ETACM |

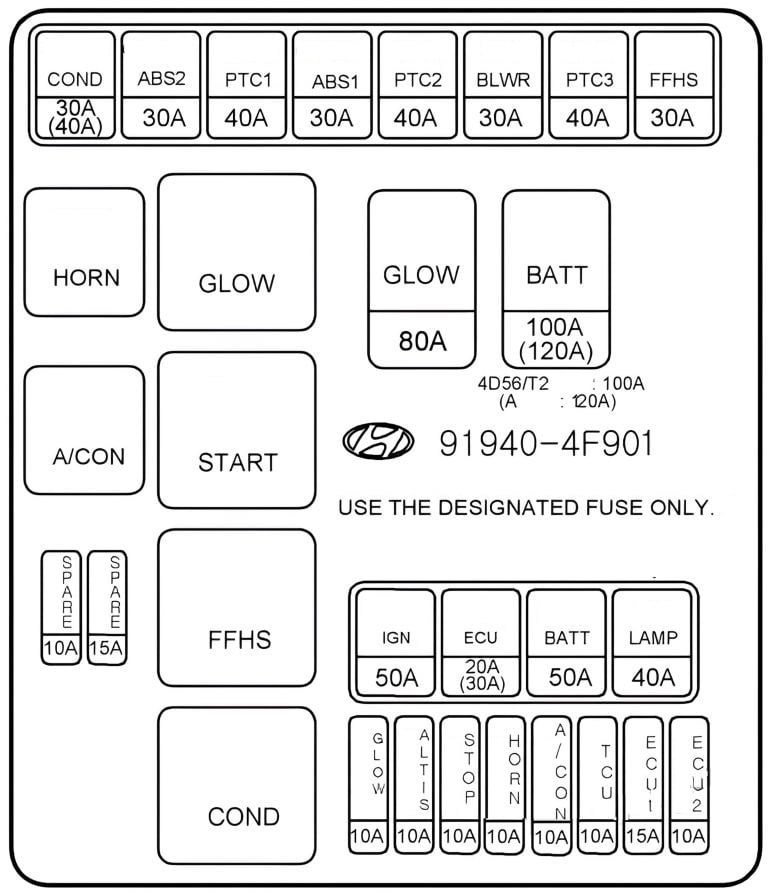

Engine Compartment Fuse Box
| DESCRIPTION | AMPERAGES | CIRCUIT PROTECTED |
|---|---|---|
| FUSIBLE LINK: | ||
| BATT | 100A | Generator |
| GLOW | 80A | Glow relay |
| IGN | 50A | Start relay, Ignition switch |
| ECU | 20A | Engine control relay |
| BATT | 50A | I/P Fuse box (A/Con, Hazard, DR Lock), Power connector |
| LAMP | 40A | P/WDW fusible link, Front Fog fuse, Tail lamp relay |
| COND | 30A | Condenser fan relay |
| ABS2 | 30A | Not used |
| PTC1 | 40A | Not used |
| ABS1 | 30A | Not used |
| PTC2 | 40A | Not used |
| BLWR | 30A | Blower relay |
| PTC3 | 40A | Not used |
| FFHS | 30A | Not used |
| FUSE: | ||
| GLOW | 10A | ECM |
| ALT_S | 10A | Generator |
| STOP | 10A | Stop lamp switch |
| HORN | 10A | Horn relay |
| A/CON | 10A | A/Con relay |
| TCU | 10A | Not used |
| ECU1 | 15A | Not used |
| ECU2 | 10A | Not used |
