Fuses
Data on the replacement fuse must match the data on the defective fuse.
The three fuse boxes are located in:
- engine compartment
- instrument panel
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognised by its melted wire.
CAUTION
Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the cover of the left side of the instrument panel. The extractor has two sides, each side is designed for a different type of fuses.
Grab the fuse with the fuse extractor and withdraw the fuse.
Engine compartment fuse box
The fuse box is in the front left of the engine compartment.
Disengage the cover and remove it.
After having changed defective fuses, close the fuse box cover and lock it.
If the fuse box cover is not closed correctly, malfunction may occur.
Non-electric vehicle
No. Circuit
- Climate control system
- Brake system
- Fuse box (right side of the instrument panel)
- Brake system
- Body control module
- Cooling fan
- Body control module
- Engine control module / Fuel pump
- NOX sensor / Diesel water sensor
- Engine control module
- Engine control module
- Diagnostic link connector
- Body control module
- Battery sensor
- Trailer control module
- Right headlight
- Engine control module / NOX sensor
- Right high beam
- Left high beam
- Engine control module / Fuel pump / Diesel heater
- Starter
- Automatic transmission
- Fuse box (trailer)
- Body control module
- Selective catalytic reduction system
- Windscreen wiper
- Climate control system
- Steering wheel
Electric vehicle
No. Circuit
- Climate control system
- Brake system
- Fuse box (right side of the instrument panel)
- Brake system
- Cooling fan
- Body control module
- Valve climate control
- Electric vehicle control unit
- Electric vehicle control unit (climate compressor)
- Electric vehicle control unit
- Diagnostic link connector
- Body control module / Climate control system
- E-service plug
- Right headlight
- Right high beam
- Left high beam
- Electric vehicle control unit
- Engine compartment relay
- AC/DC converter / DC/DC converter
- High voltage battery interface
- Motor controller (electric motor and inverter)
- Body control module
- Windscreen wiper
- Body control module
- Body control module
- Steering wheel
Instrument panel fuse box
Fuse box on the left side of the instrument panel
In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.
Non-electric vehicle
No. Circuit
- Radar / Interior mirror
- Inductive charging
- Horn
- Windscreen washer
- Windscreen washer
- USB
- Rear wiper
- Central locking system
- Central locking system
- Diagnostic connector module
- Climate control system
- Alarm / Vauxhall Connect
- Instrument cluster
- Power button / Anti-theft locking system
- Rain sensor / Light sensor / Camera
- Seatbelt reminder
- Infotainment / Parking assist /Rear view camera
- Airbag
- Anti-theft alarm system
- Infotainment
- Cigarette lighter / 12 V power outlet
- Heated steering wheel
- Climate control system / Automatic transmission
- Parking assist / Exterior mirror adjustment
Electric vehicle
No. Circuit
- Radar / Interior mirror
- Inductive charging
- Horn
- Windscreen washer
- Windscreen washer
- USB
- Rear wiper
- Central locking system
- Central locking system
- Diagnostic connector module
- Climate control module / radio faceplate
- Alarm / Vauxhall Connect
- Electronic shifter module /Headlight control unit
- Low voltage network separation device
- Instrument cluster
- Reserved for Aftersales equipment
- Steering column control / Steering wheel controls
- Power button
- Rain sensor / Light sensor / Camera
- Seatbelt reminder
- Infotainment / Parking assist / Rear view camera
- Airbag
- Anti-theft alarm system
- Infotainment
- Cigarette lighter / 12 V power outlet
- Heated steering wheel
- Right front headlight
- Parking assist / Exterior mirror adjustment

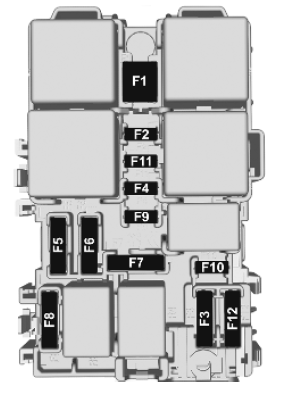

Fuse box on the right side of the instrument panel
In right-hand drive vehicles, the fuse box is located behind a cover in the instrument panel. Disengage cover at the bottom side and remove. Remove the bracket.
No. Circuit
- Heated rear window
- Heated exterior mirrors
- Power windows front
- Exterior mirror adjustment / Folding mirrors
- Power windows rear
- Fuse box (right side of the instrument panel)
- Heated front seats
- Seat massage function
