Peugeot 207 (2006 – 2011) Fuse Box Diagrams & Location
The Peugeot 207 (2006–2011) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 207.
Fuse Box Location
Passenger Compartment Fuse Box

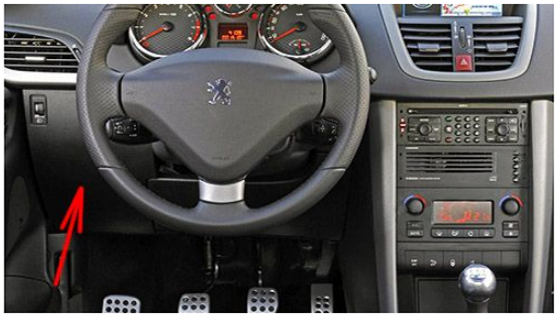

Left-hand drive vehicles: the fusebox is placed in the lower dashboard (left-hand side).

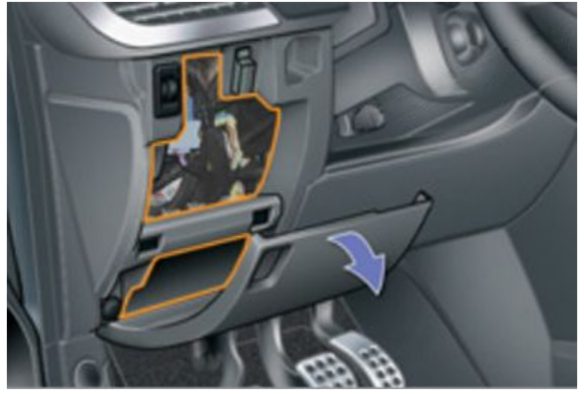

Unclip the cover pulling at the top, remove the cover completely.

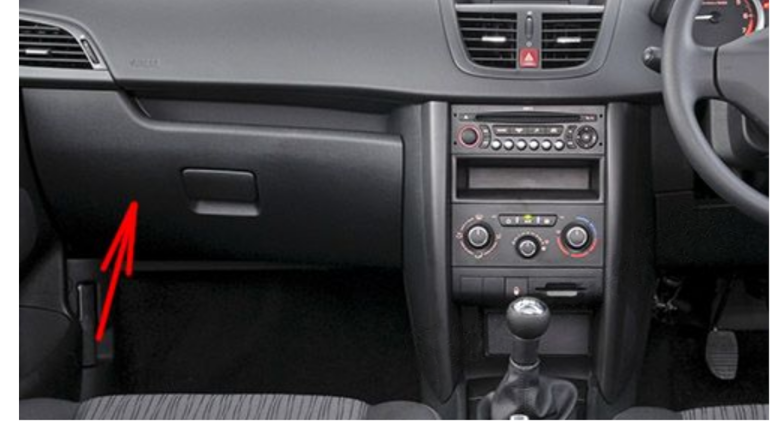

Right-hand drive vehicles: it is located in the lower part of the dashboard (left-hand side).

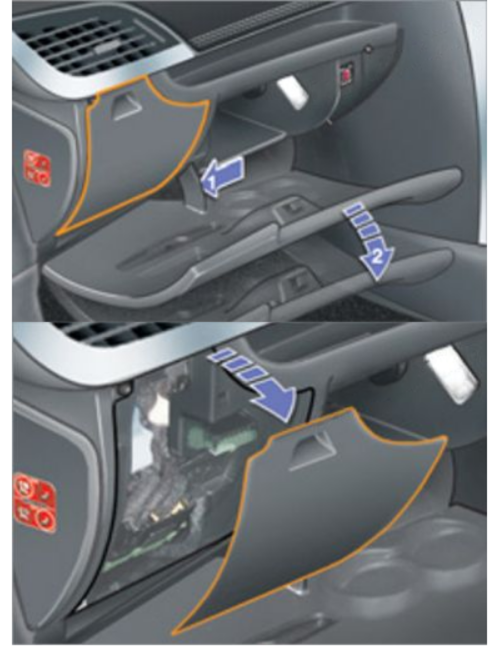

Open the glove box lid, push the opening guide to the left to go beyond the first notch, open the glove box lid fully, unclip the fusebox cover pulling at the top, remove the cover completely.
Engine Compartment Fuse Box

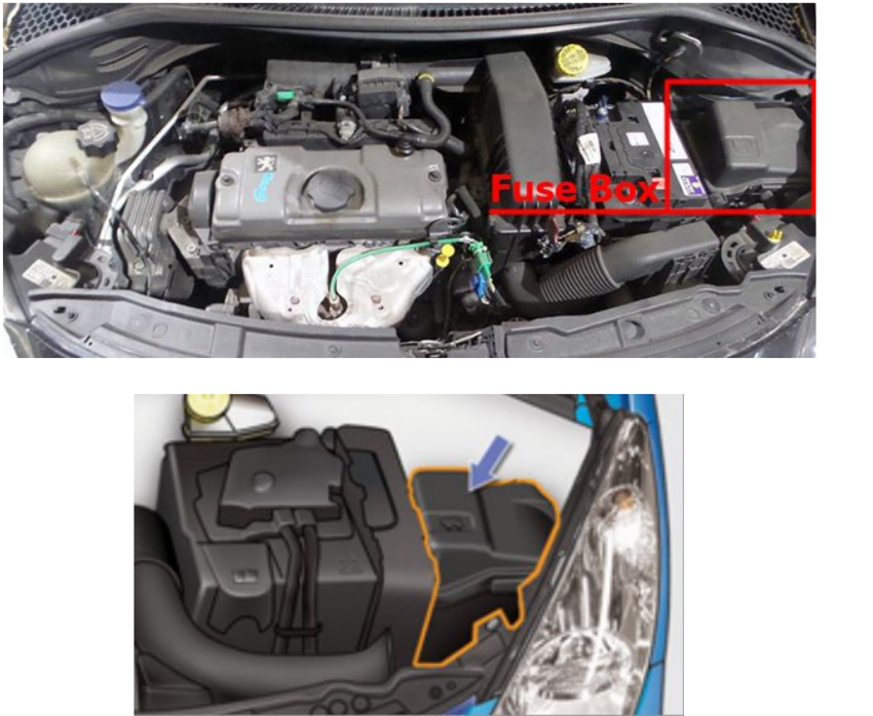

The fuse box is located in the engine compartment, near the battery (right-hand side).
Fuse Box Diagrams

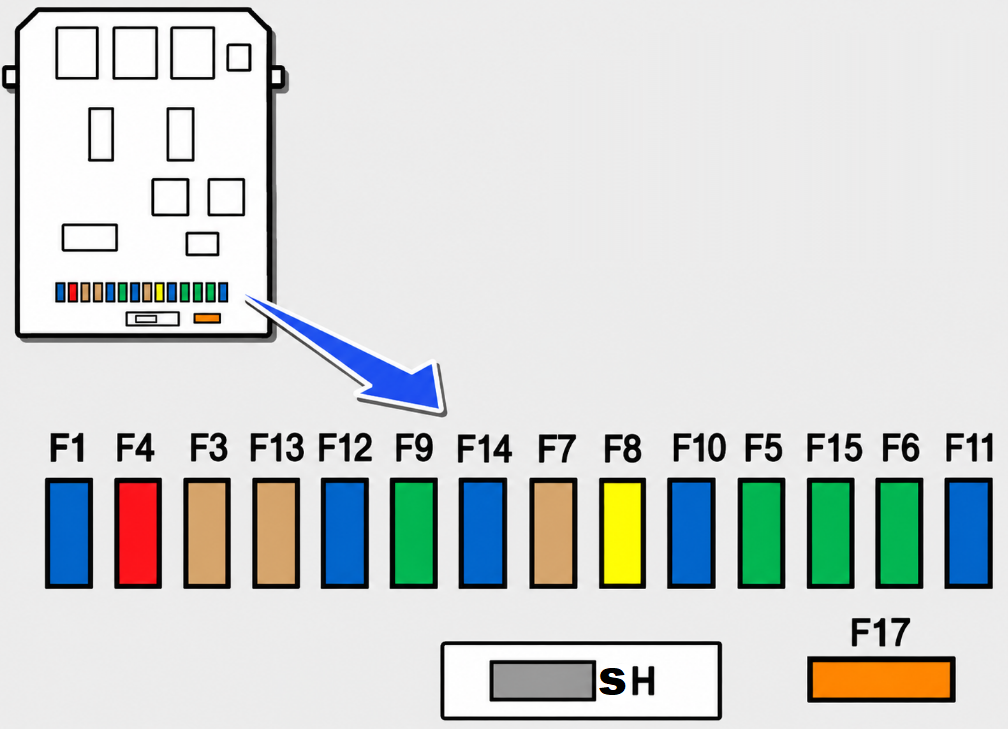

Passenger Compartment Fuse Box
| N° | Rating | Function |
|---|---|---|
| F1 | 15 A | Rear wiper |
| F2 | — | Not used |
| F3 | 5 A | Airbags and pre-tensioners control unit |
| F4 | 10 A | Clutch pedal switch, diagnostic socket, electrochromatic interior/rear-view mirror, air conditioning, steering wheel angle sensor, and particle emission filter pump (Diesel) |
| F5 | 30 A | Electric windows, rear electric windows, and sunroof (2006–2007); rear one-touch electric windows and panoramic sunroof (SW) from 2008–2011 |
| F6 | 30 A | Front electric windows and folding mirror supply (2006–2007); front one-touch electric windows and folding mirror supply (2008–2011) |
| F7 | 5 A | Front and rear courtesy lights, map-reading lights, sun visor lighting, and glove box lighting (2006–2011); clock also included in 2006–2007 |
| F8 | 20 A | Audio equipment, audio/telephone, clock, multifunction display/screen, steering wheel controls, and trailer fuse box (2006–2011); CD changer and tyre under-inflation detection additionally included in 2006–2007 |
| F9 | 30 A | Front 12 V socket (2006–2007); front and rear 12 V sockets (SW) from 2008–2011 |
| F10 | 15 A | Alarm siren, alarm control unit, and directional headlamps (2006–2010) |
| F11 | 15 A | Diagnostic socket and low-current ignition switch (2006–2007); diagnostic socket, low-current ignition switch, and automatic gearbox control unit (2008–2011) |
| F12 | 15 A | Rain/brightness sensor, amplifier, trailer fuse box, and driving school module (2006–2007); rain/sunshine sensor, amplifier, trailer fuse box, and driving school module (2008–2011) |
| F13 | 5 A | Engine fuse box, ABS relay, 2 Tronic gearbox selector lever, and dual-function brake switch (2006–2010); engine fuse box, ABS relay, and dual-function brake switch (2011) |
| F14 | 15 A | Instrument panel, seat-belt warning lights panel, headlamp adjustment, air conditioning, hands-free kit, rear parking assistance control unit, and airbags (2006–2007); instrument panel, seat-belt warning lamps panel, headlamp adjustment, air conditioning, Bluetooth system, rear parking sensors control unit, and airbags (2008–2011) |
| F15 | 30 A | Locking and deadlocking (2006–2010); locking (2011) |
| F17 | 40 A | Rear screen and exterior mirror de-icing (2006–2010); heated rear screen and door mirrors (2011) |
| SH | — | PARC shunt |
| G39 | 20 A | Hi-Fi amplifier (2006–2007); not used (2008–2011) |
| G40 | 20 A | Driver and passenger heated seats, except RHD models |

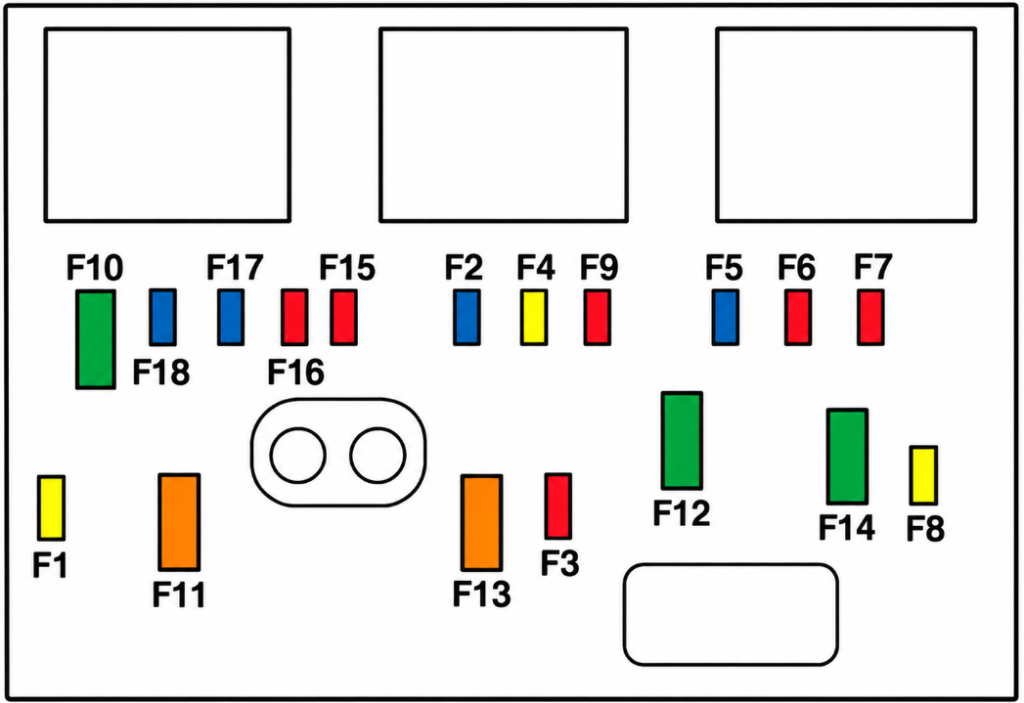

Engine Compartment Fuse Box
| N° | Rating | Function |
|---|---|---|
| F1 | 20 A | Engine control unit and fan assembly control relay supply; Diesel airflow sensor, injection pump, water-in-diesel sensor, EGR electrovalves and air heating. 2007–2011: Also timing and canister electrovalves for 1.6L 16V THP. |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front and rear screenwash. |
| F4 | 20 A | Headlamp wash. |
| F5 | 15 A | 2006: Fuel pump only.2007–2011: Turbo electrovalves added for 1.6L 16V THP. |
| F6 | 10 A | 2006: Vehicle speed sensor.2007–2011: Vehicle speed sensor, automatic gearbox. |
| F7 | 10 A | 2006-2010: Electric power steering, directional headlamps, directional headlamps control relay, engine coolant level detector (Diesel), switching and protection unit (Diesel).2011: Electric power steering, switching and protection unit (Diesel). |
| F8 | 20 A / 25 A | Starter motor control. 2006–2010: 20 A. 2011: 25 A. |
| F9 | 10 A | ABS/ESP control unit and brake pedal switch. |
| F10 | 30 A | 2006-2010: Engine control unit actuators (petrol: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (Diesel: solenoid valves, heaters). 2011: Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, electronic thermostat) (Diesel: electrovalves, heaters). |
| F11 | 40 A | Air-conditioning blower. |
| F12 | 30 A | Windscreen wipers, low/high speed. |
| F13 | 40 A | Built-in systems interface supply, ignition positive. |
| F14 | 30 A | Diesel heater. |
| F15 | 10 A | Left main-beam headlamp. |
| F16 | 10 A | Right main-beam headlamp. |
| F17 | 15 A | Left dipped-beam headlamp. |
| F18 | 15 A | Right dipped-beam headlamp. |
| MF1* | 70 A | Fan assembly. |
| MF2* | 20 A / 30 A | ABS/ESP pump. |
| MF3* | 20 A / 30 A | ABS/ESP electrovalves. |
| MF4* | 60 A | Built-in systems interface supply. |
| MF5* | 60 A | Built-in systems interface supply. |
| MF6* | 30 A | 2007–2011: Additional fan assembly for 1.6L 16V THP. |
| MF7* | 80 A | Passenger-compartment fuse box. |
| MF8* | 30 A | 2006–2010: “2 Tronic” gearbox control unit. |
| MF9* | 80 A | Diesel heating unit. |
| MF10* | 80 A | Electric power steering. |
| MF11* | 40 A | 2007–2011: Valvetronic electric motor for 1.6L 16V THP. |
