Vauxhall Agila (2009–2012) Fuse Box Diagrams & Location
The Vauxhall Agila (2009–2012) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Agila.
Fuse Box Location

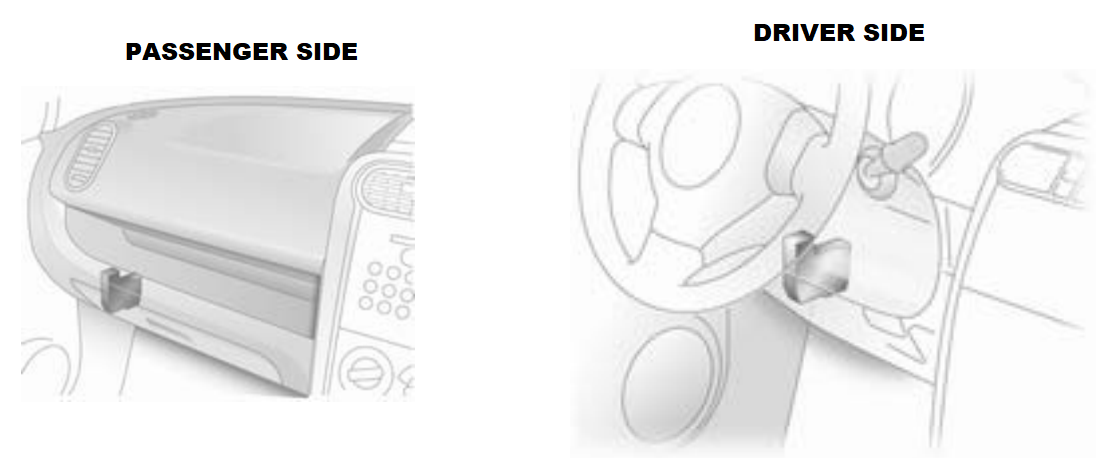

Passenger Compartment Fuse Box
To open the fuse box, push the cover at both ends and remove. Do not store any objects behind the cover.
Engine Compartment Fuse Box
Petrol engines

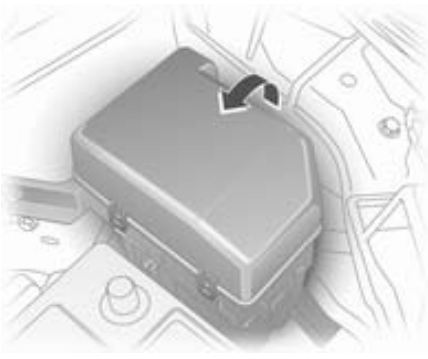

The fuse box is located next to the battery in the engine compartment. Disengage the cover and tilt upwards to open.
Diesel engines

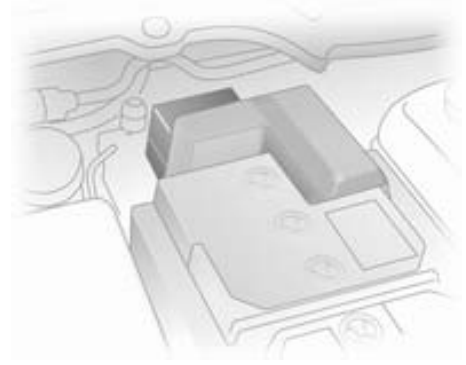

The fuse box is located behind the battery in the engine compartment. Disengage the cover and lift upwards to open.
Fuse Box Diagrams

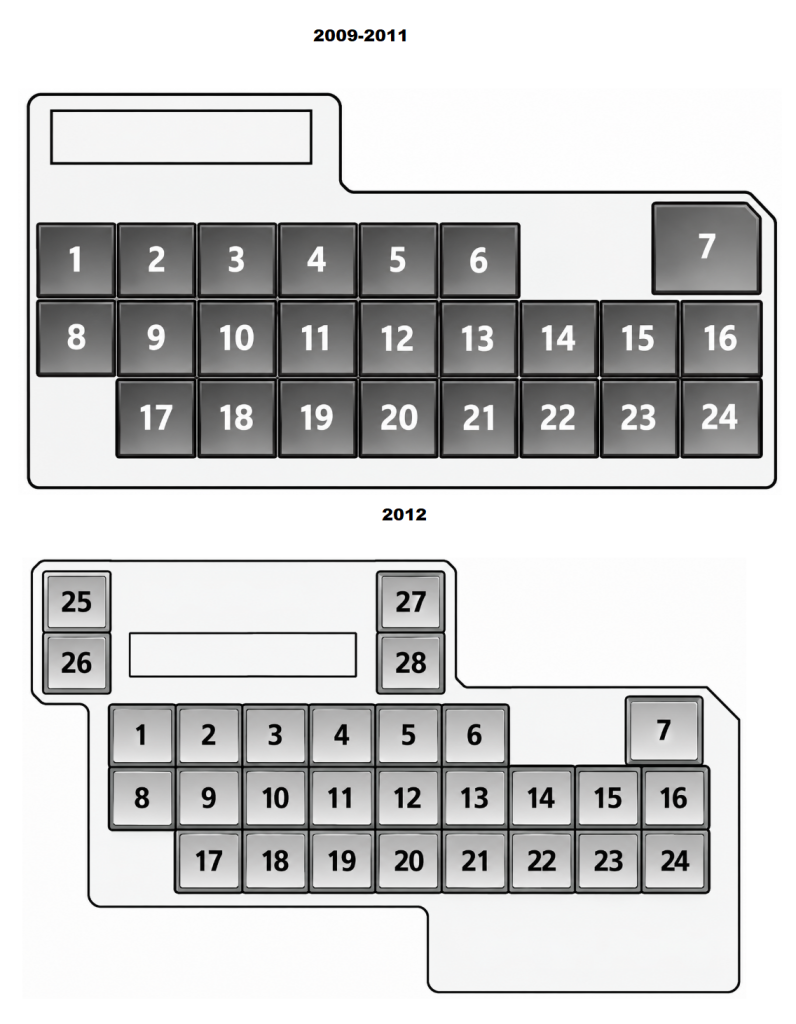

Passenger Compartment Fuse Box
| Fuse No. | Function |
|---|---|
| 1 | – |
| 2 | Ignition coils |
| 3 | Reversing light |
| 4 | Instrument cluster |
| 5 | Power outlet, cigarette lighter, power exterior mirror |
| 6 | Infotainment system |
| 7 | Power windows |
| 8 | Wipers/washers |
| 9 | Power steering |
| 10 | Airbag system |
| 11 | ABS, ESP |
| 12 | Tail light |
| 13 | 2011–2012: Stop-start system |
| 14 | Door lock |
| 15 | 2009–2010: Diesel engine |
| 16 | Starter motor |
| 17 | 2012: Heated seats |
| 18 | Heater fan |
| 19 | Rear fog light |
| 20 | Infotainment system |
| 21 | Heated rear window |
| 22 | Horn, hazard warning |
| 23 | 2009–2010: Manual transmission; 2011–2012: Stop-start system |
| 24 | 2009–2010: Power windows; 2011–2012: Power window timer |
| 25 | 2012: Accessory, LHD Stop-start system |
| 26 | 2012: Infotainment system, LHD Stop-start system |
| 27 | 2012: Accessory, RHD Stop-start system |
| 28 | 2012: Infotainment system, RHD Stop-start system |
Engine Compartment Fuse Box

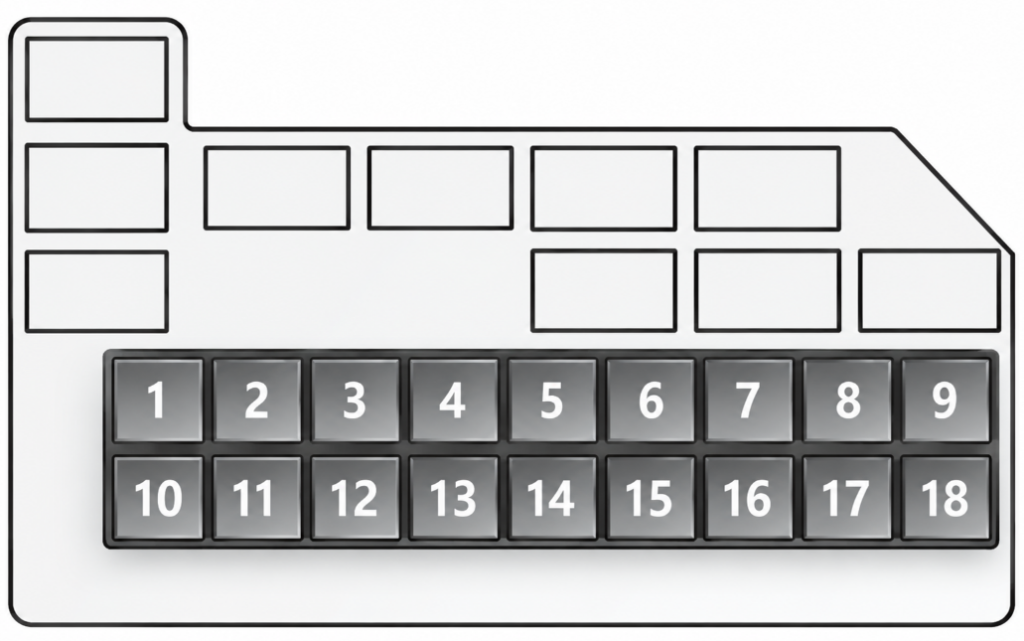

Petrol engines
(2009 – 2012)
| No. | Circuit |
|---|---|
| 1 | Heater fan |
| 2 | Fuel injection |
| 3 | Air conditioning compressor |
| 4 | Automatic transmission |
| 5 | Brake light switch |
| 6 | ABS, ESP |
| 7 | Starter motor |
| 8 | — |
| 9 | Power steering control module |
| 10 | Ignition switch |
| 11 | Radiator fan |
| 12 | — |
| 13 | ABS, ESP |
| 14 | — |
| 15 | Engine electrics |
| 16 | Front fog lights |
| 17 | Headlight (left) |
| 18 | Headlight (right) |

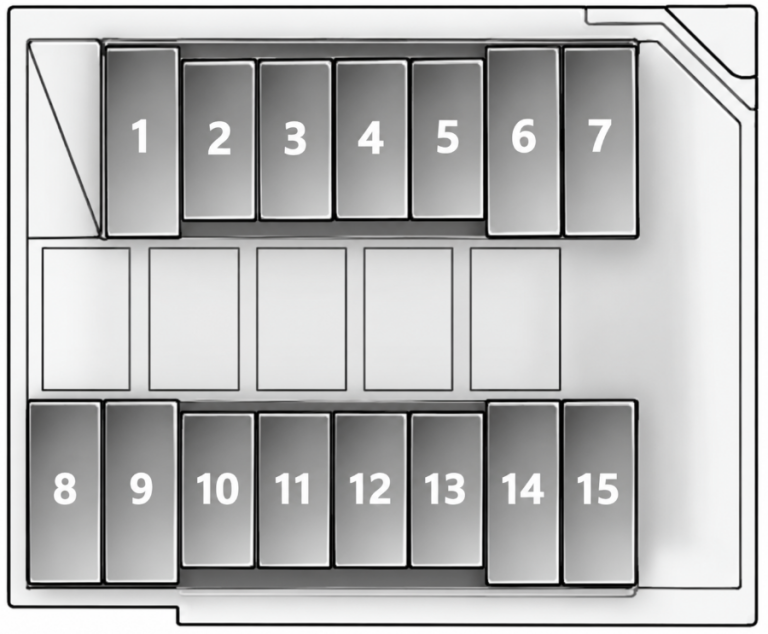

Diesel engines
(2009-2010
| No. | Circuit |
|---|---|
| 1 | Starter motor |
| 2 | Air conditioning compressor |
| 3 | Fuel pump |
| 4 | Fuel injection |
| 5 | Heater fan |
| 6 | Radiator fan |
| 7 | Power steering control module |
| 8 | ABS, ESP |
| 9 | ABS, ESP |
| 10 | Brake light switch |
| 11 | Headlight (right) |
| 12 | Headlight (left) |
| 13 | Front fog lights |
| 14 | Ignition switch |
| 15 | Ignition switch, power windows, wipers, starter |
