Vauxhall Ampera (2012 & 2013) Fuse Box Diagrams & Location

The Vauxhall Ampera (2012–2013) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Ampera.

Fuse Box Location

Passenger Compartment Fuse Box

Left Side

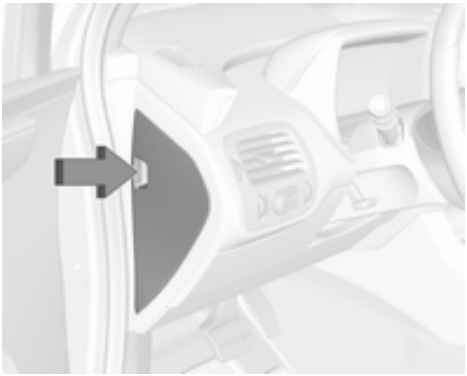

The left instrument panel fuse box is located on the left side end of the instrument panel. To access the fuses, open the fuse panel door by pulling out. A fuse puller is located in the engine compartment fuse box.

Passenger-Compartment-Fuse-Box-Left-Side-Location-1

Right Side

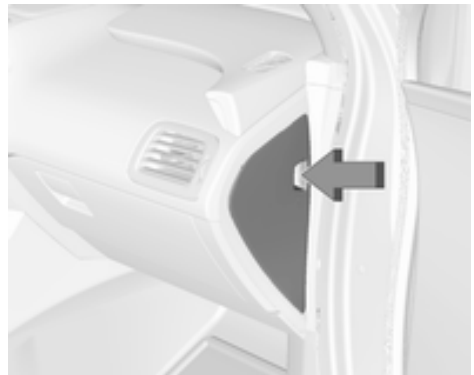

The right instrument panel fuse box is located on the right side end of the instrument panel. To access the fuses, open the fuse panel door by pulling it out. A fuse puller is located in the engine compartment fuse block.

Passenger-Compartment-Fuse-Box-Right-Side-Location-1

Engine Compartment Fuse Box

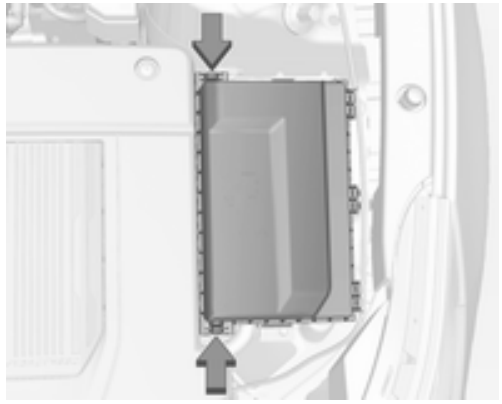

The fuse box is in the front left of the engine compartment. To open the fuse block cover, press the clips at the front and back and rotate the cover up to the side.

Engine-Compartment-Fuse-Box-Location-15

Load Compartment Fuse Box

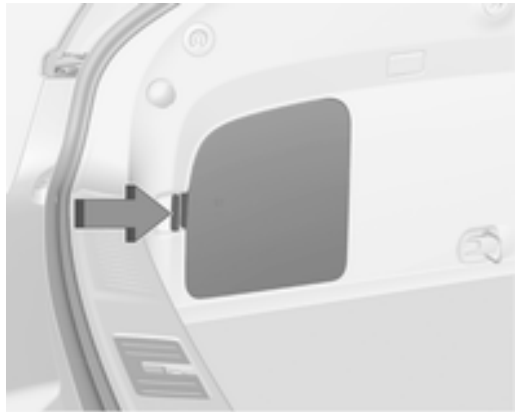

The fuse box is on the left side of the load compartment behind a cover. Remove the cover. A fuse puller is located in the engine compartment fuse box.

Load-Compartment-Fuse-Box-Location-2

Fuse Box Diagrams

Passenger Compartment Fuse Box

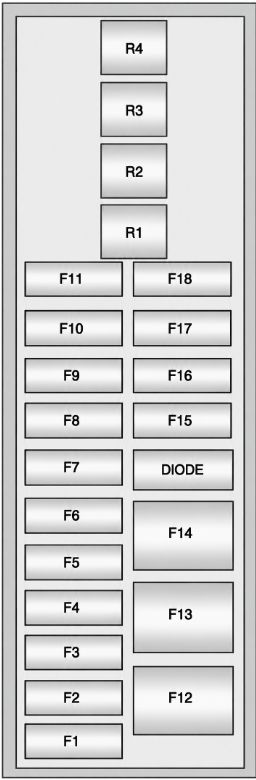

Passenger-Compartment-Fuse-Box-Diagrams-8

Left Side
Fuse No. Usage
F1 Power outlet – Top of IP storage bin
F2 Radio
F3 Instrument cluster (left hand drive)
F4 Infotainment display
F5 Heating, ventilation & air conditioning / Integrated centre stack switches
F6 Airbag (Sensing diagnostic module)
F7 Left primary data link connector (left hand drive), Left secondary data link connector (right hand drive)
F8 Column lock (left hand drive)
F9 Hands-free phone
F10 Body control module 1 / Body control module electronics / Remote entry / Power moding / Centre high-mounted stoplight / Number plate lights / Left daytime running light / Left position lights / Tailgate release relay control / Washer pump relay control / Switch indicator lights
F11 Body control module 4 / Left headlight
F12 Blower (left hand drive)
F13 –
F14 –
F15 Power outlet (Inside floor console / Rear of floor console)
F16 –
F17 –
F18 –

To reinstall the door, insert the bottom tab first, then push the door back into its original location.

Right Side
Fuse No. Usage
F1 Steering wheel switch backlighting
F2 Column lock (right hand drive)
F3 Cluster (right hand drive)
F4 Body control module 3 / Right headlight
F5 Body control module 2 / Body control module electronics / Tail light / Right daytime running light / Shifter lock / Switch backlighting / Rear fog light
F6 Body control module 5 / Retained accessory power relay control / Right front turn signal light / Left rear stop and turn signal light / Right position lights / Remote PRNDL
F7 Body control module 6 / Map lights / Courtesy lights / Reversing lights
F8 Body control module 7 / Left front turn signal / Right rear stop and turn signal light / Child security lock relay control
F9 Body control module 8 / Locks
F10 Right secondary data link connector (left hand drive), Right primary data link connector (right hand drive)
F11 Intrusion and inclination sensor
F12 Blower motor (left hand drive)
F13 –
F14 –
F15 –
F16 –
F17 –
F18 –

To reinstall the door, insert the bottom tab first, then push the door back into its original location.

Engine Compartment Fuse Box

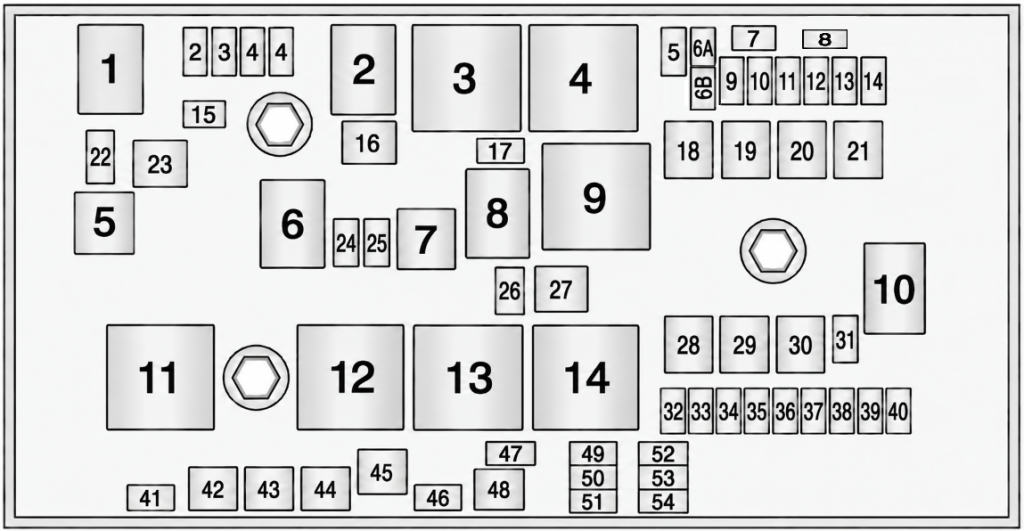

Engine-Compartment-Fuse-Box-Diagrams-11-1024x531

Fuse No. Fuse Type Usage
1 Mini fuse Engine control module – switched power
2 Mini fuse Emissions
3 Mini fuse –
4 Mini fuse Ignition coils / Injectors
5 Mini fuse Column lock
6 Mini fuse –
7 Mini fuse –
8 Mini fuse –
9 Mini fuse Heated mirrors
10 Mini fuse Air conditioning control module
11 Mini fuse Traction power inverter module – Battery
12 Mini fuse –
13 Mini fuse Cabin heater pump and valve
14 Mini fuse Theft deterrent — Power sounder
15 Mini fuse Traction power inverter module and transmission control module — Battery
16 J-case fuse –
17 Mini fuse Engine control module — Battery
18 J-case fuse –
19 J-case fuse Front power window
20 J-case fuse –
21 J-case fuse Antilock brake system electronic control unit
22 Mini fuse Left high-beam headlight
23 J-case fuse Charge port door
24 Mini fuse –
25 Mini fuse –
26 Mini fuse Theft deterrent — Horn
27 J-case fuse –
28 J-case fuse –
29 J-case fuse –
30 J-case fuse Antilock brake system motor
31 Mini fuse –
32 Mini fuse Run/Crank — Sensing diagnostic module, instrument cluster, passenger airbag display, headlight level switch, automatic dimming inside rearview mirror
33 Mini fuse Run/Crank — Vehicle integration control module
34 Mini fuse Vehicle integration control module — Battery
35 Mini fuse –
36 Mini fuse Power electronics coolant pump
37 Mini fuse Cabin heater control module
38 Mini fuse Rechargeable energy storage system (high-voltage battery) coolant pump
39 Mini fuse Rechargeable energy storage system (high-voltage battery) control module
40 Mini fuse Front windscreen washer
41 Mini fuse Right high-beam headlight
42 J-case fuse Right cooling fan
43 J-case fuse Front wipers
44 J-case fuse Charger
45 J-case fuse –
46 Mini fuse –
47 Mini fuse –
48 J-case fuse Left cooling fan
49 Mini fuse –
50 Mini fuse Run/Crank — Rear view camera, accessory power module, tyre pressure monitor, headlight levelling motors
51 Mini fuse Run/Crank for ABS / Rechargeable energy storage system (high-voltage battery)
52 Mini fuse Engine control module / transmission control module — Run/Crank
53 Mini fuse Traction power inverter module — Run/Crank
54 Mini fuse Run/Crank — Fuel system control module, air conditioning control module, on-board charger

Load Compartment Fuse Box

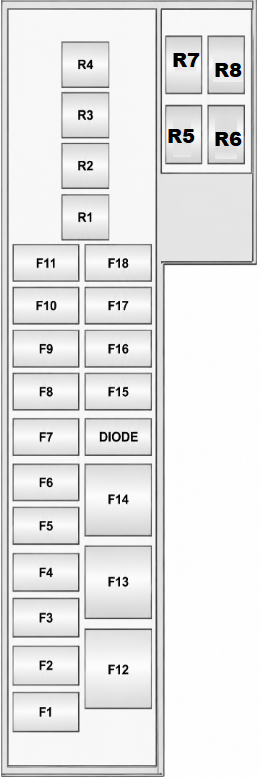

Load-Compartment-Fuse-Box-Diagrams-3

Fuse No. Usage
F1 –
F2 Fuel system control module
F3 Passive start / Passive entry module
F4 Heated seats
F5 Driver door switches (Outside rearview mirror / Charge port door release / Refuel request / Driver window switch)
F6 Fuel (Diurnal valve and evap. leak check module)
F7 Accessory power module cooling fan
F8 Amplifier
F9 Digital audio broadcast
F10 Regulated voltage control / Ultrasonic front and rear parking assist
F11 Horn
F12 Rear power windows
F13 Electrical parking brake
F14 Rear defog (Upper grid)
F15 –
F16 Tailgate release
F17 –
F18 –
