Vauxhall Crossland X (2017–2020) Fuse Box Diagrams & Location
The Vauxhall Crossland X (2017–2020) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Crossland X.
Fuse Box Location
Passenger Compartment Fuse Box
Left Side Fuse box

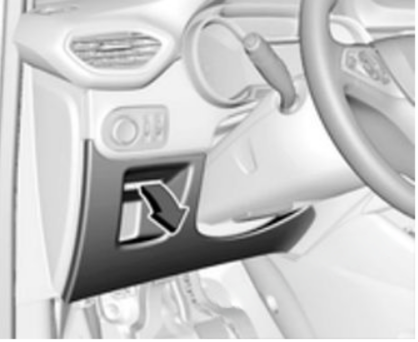

In left-hand drive vehicles, the fuse box is behind a cover in the instrument panel. Disengage cover at the side and remove.

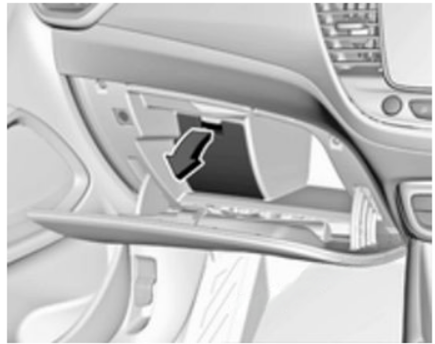

In right-hand drive vehicles, it is located behind a cover in the glovebox. Open the glove box and remove the cover.
Right Side Fuse box

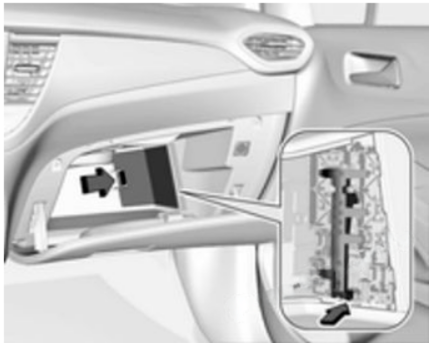

In left-hand drive vehicles, it is located behind a cover in the glovebox. Open the glove box and remove the cover, remove the bracket.

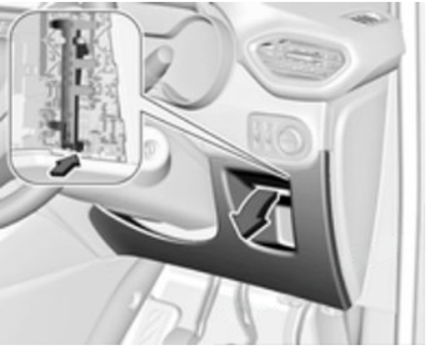

In right-hand drive vehicles, the fuse box is behind a cover in the instrument panel. Disengage cover at the side and remove.
Engine Compartment Fuse Box

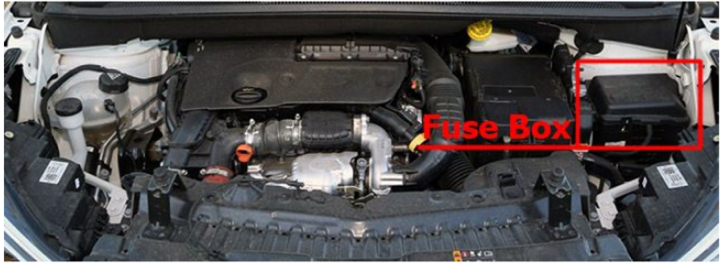

The fuse box is in the front left of the engine compartment.

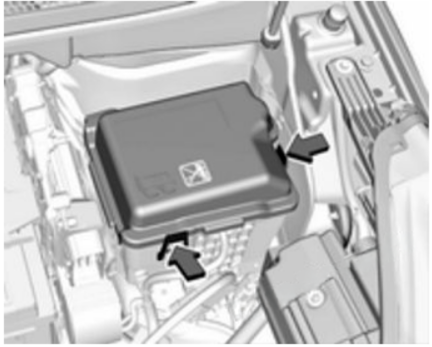

Disengage the cover and remove it.
Fuse Box Diagrams
Passenger Compartment Fuse Box
Left Side
| № | Circuit |
|---|---|
| 1 | Interior mirror / Exhaust system / Electric power steering / Clutch sensor / LPG / Exterior mirror adjustment / Inductive charging |
| 2 | – |
| 3 | Trailer Hitch |
| 4 | Horn |
| 5 | Windscreen washer pump front/ rear |
| 6 | Windscreen washer pump front/ rear |
| 7 | Heated steering wheel |
| 8 | Rear wiper |
| 9 | – |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Instrument cluster |
| 13 | Climate control system / USB |
| 14 | OnStar or BTA module |
| 15 | Instrument cluster / Climate control system |
| 16 | Brake / Starter / Retained power off |
| 17 | Instrument cluster |
| 18 | Advanced parking assist |
| 19 | Top column module / Trailer control module |
| 20 | – |
| 21 | Anti-theft alarm system / Start button |
| 22 | Rain sensor / Camera |
| 23 | Door module |
| 24 | Advanced parking assist / Camera / Infotainment |
| 25 | Airbag |
| 26 | Top column module |
| 27 | Anti-theft alarm system |
| 28 | – |
| 29 | Infotainment |
| 30 | – |
| 31 | Infotainment |
| 32 | Power outlet front |
| 33 | – |
| 34 | Heated exterior mirrors / Door module |
| 35 | Instrument cluster / Light switch / Advanced parking assist/ Transmission control module |
| 36 | Courtesy lights / Sunvisor lights / Glovebox light |

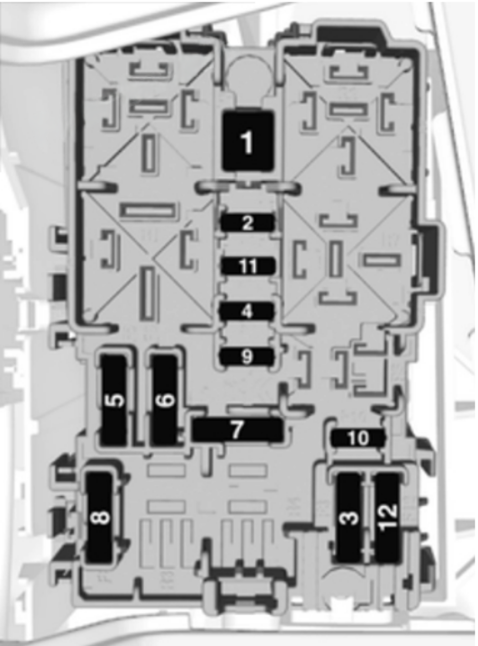

Right Side
| № | Circuit |
|---|---|
| 1 | Heated rear window |
| 2 | Heated exterior mirrors |
| 3 | Front power window |
| 4 | Driver’s door control unit |
| 5 | Rear power window |
| 6 | Heated seats |
| 7 | – |
| 8 | Infotainment |
| 9 | – |
| 10 | Power outlet rear |
| 11 | – |
| 12 | – |

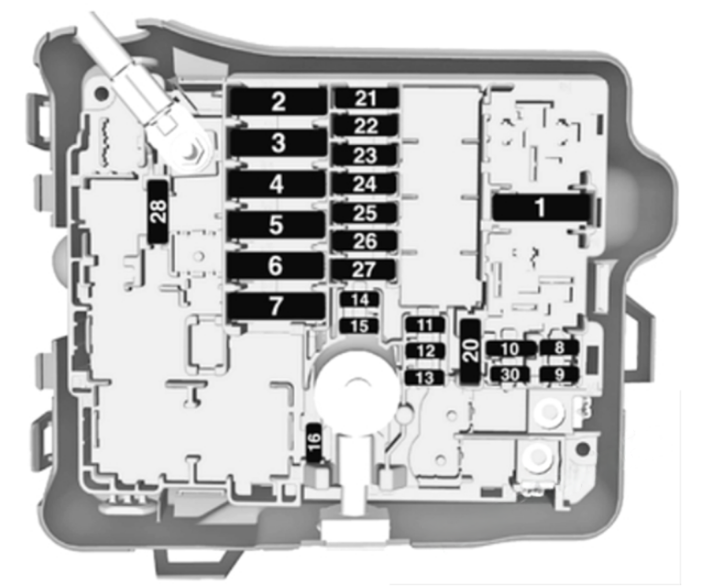

Engine Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | Fan climate control system |
| 2 | – |
| 3 | Body fuse box |
| 4 | – |
| 5 | Instrument panel fuse box |
| 6 | Engine cooling unit |
| 7 | Body control module |
| 8 | Engine control fuel pump |
| 9 | Engine control |
| 10 | Engine control |
| 11 | Engine control |
| 12 | Engine cooling unit |
| 13 | Body control module |
| 14 | Intelligent battery sensor |
| 15 | – |
| 16 | Front fog light |
| 17 | – |
| 18 | High beam right |
| 19 | High beam left |
| 20 | Engine control fuel pump |
| 21 | Starter |
| 22 | – |
| 23 | Starter |
| 24 | Trailer hitch |
| 25 | Instrument panel fuse box |
| 26 | Transmission control module |
| 27 | Body control module |
| 28 | Engine control module |
| 29 | Front wiper |
| 30 | Body control module |
